High-performance plate heat exchangers, shell-and-tube systems, and thermal management solutions engineered for maximum coefficient of performance across food processing, pharmaceutical, data center, and chemical industries.
Engineered heat transfer solutions spanning plate, brazed, shell-and-tube, and air-cooled configurations with AHRI-certified performance ratings.

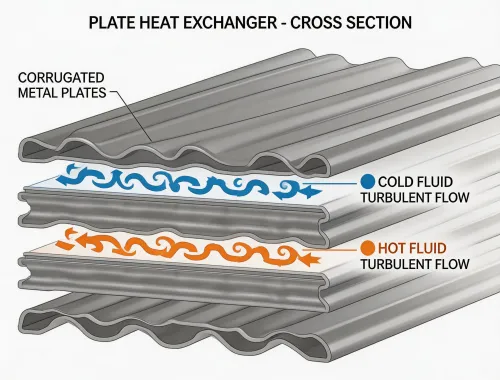

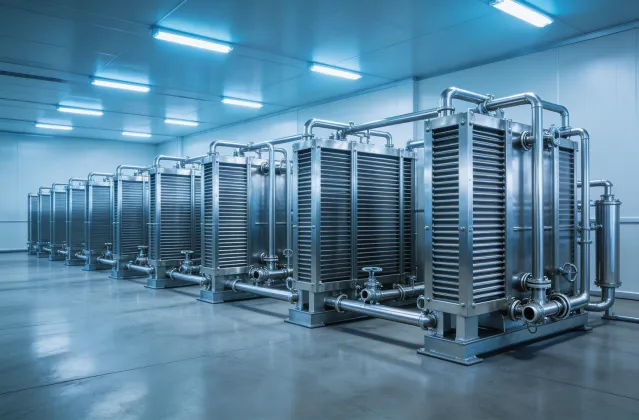

Gasketed and semi-welded plate heat exchangers delivering heat transfer coefficients 3-5x higher than shell-and-tube designs. AHRI 400 certified.
View Specifications →
Vacuum-brazed compact units for HVAC, refrigeration, and process cooling. Operating pressures up to 30 bar with approach temperatures under 1°C.
View Specifications →
ASME U-Stamp certified shell-and-tube heat exchangers for high-pressure, high-temperature, and fouling-prone applications up to 300°C and 25 bar.
View Specifications →
Steam and hot water boilers rated up to 2,000 kg/h steam output. Gas-fired and dual-fuel configurations with NFPA and PED compliance.
View Specifications →

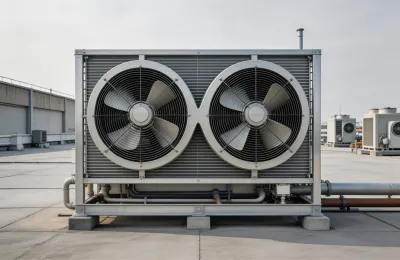

Air-cooled condensers, evaporative condensers, and evaporator coils optimized for refrigerant systems using R-134a, R-290, and R-744 (CO2).
View Specifications →

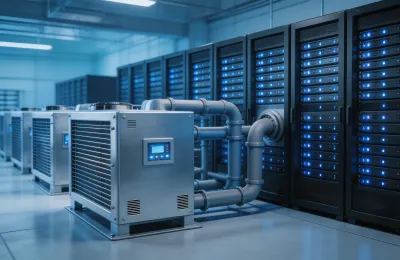

Precision cooling solutions combining free cooling, direct liquid cooling, and rear-door heat exchangers for PUE targets below 1.2.
View Specifications →
Every AlfaTherm heat exchanger is designed using computational fluid dynamics (CFD) simulation to optimize log mean temperature difference (LMTD), minimize fouling factors, and achieve approach temperatures as low as 0.5°C.
Thermal solutions engineered for the specific temperature profiles, sanitary requirements, and regulatory frameworks of each sector.
HACCP-compatible pasteurization, CIP-ready heat exchangers, and glycol-based process cooling from +95°C to -40°C.
Clean room rated thermal systems with ±0.1°C temperature control for API synthesis, lyophilization, and cold chain integrity.
Free cooling economizers, rear-door heat exchangers, and immersion cooling systems targeting PUE below 1.15.
Corrosion-resistant heat exchangers in titanium, Hastelloy, and duplex stainless steel for aggressive media up to 300°C.
DNV/GL certified compact plate heat exchangers for engine cooling, freshwater generation, and HVAC on vessels and platforms.
High-pressure feedwater heaters, turbine oil coolers, and waste heat recovery systems for combined cycle and cogeneration plants.
Selected thermal system installations demonstrating measurable process improvements across industries.
A mid-scale dairy processing plant in the Netherlands operating at 45,000 L/hr milk throughput required replacing aging tubular heat exchangers with 12 years of calcium fouling buildup. AlfaTherm installed 6 gasketed plate heat exchangers (Model AT-GP120, 316L stainless steel, 18 m² heat transfer area each) with EHEDG-compliant CIP connections. Post-commissioning thermal testing per AHRI 400 confirmed approach temperatures of 0.8°C versus the previous 3.2°C, reducing steam consumption by 22% and cutting annual energy costs by approximately EUR 48,000. Cleaning intervals extended from 8 hours to 14 hours between CIP cycles.
A 12 MW colocation data center in Frankfurt, Germany with legacy DX cooling running at PUE 1.65 engaged AlfaTherm to design a free cooling retrofit. The project deployed 8 brazed plate heat exchangers (Model AT-BPX80, 40 bar design pressure) integrated with a new glycol loop and variable-speed dry coolers. Commissioning in Q4 2023 measured PUE at 1.18 during winter months (outdoor air below 12°C) and 1.32 during summer peak. Annual electricity savings reached 2.8 GWh, corresponding to approximately EUR 420,000 at prevailing German industrial rates.
A chemical facility in Texas processing 98% concentrated sulfuric acid at 180°C experienced tube failures every 9 months on carbon steel shell-and-tube coolers. AlfaTherm engineered a replacement using 2 semi-welded plate heat exchangers with Hastelloy C-276 plates (Model AT-SW60, 25 bar design, ASME U-Stamp certified). After 24 months of continuous operation, zero plate failures were recorded. Acid outlet temperature stability improved to ±1.5°C versus the previous ±4°C variance, reducing downstream process upsets by 85%.
Our engineering team provides free heat exchanger sizing, selection guidance, and ROI calculations for your specific application parameters.
